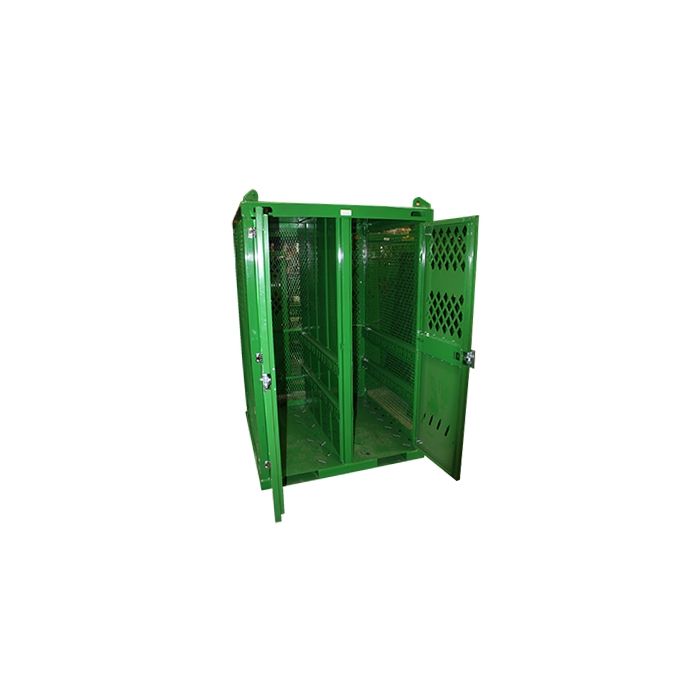

STS-20-FW-2 20 Cylinders Vertical Storage, Outdoor Gas Firewall Cylinder Cabinet
This gas cylinder cabinet holds approximately 20 gas cylinders of 9.25"
diameter or any equivalent combination of cylinders depending on
cylinder diameter and includes a firewall for oxygen and fuel (eg
acetylene) separation. The cabinet is made with fully-welded steel and
has a solid panel roof. There are 4 integrated lifting eyes that allow
the cabinet to be picked up by a crane or hoist hook. It also includes a
forklift base featuring fully-enclosed channels. This gas welding
cabinet allows storage of fuel and oxygen cylinders in compliance with
OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations
with 1-hour fire barrier material. The firewall consists of two pieces
of 14 gauge sheet steel with a baffle in between all welded together.
The double doors have a lockable latch. Inside there is the E-track
strapping system to secure the cylinders with the included ratchet
strap. It has a certified payload capacity of 4,500 lbs. Includes
manufacturer's vinyl ID tag that provides the load capacity and unit
weight. Overall Product
Dimensions (WxDxH): 51" x 51" x 79". (cabinet height not including hoist
hook is 74.375"), Usable floor space (2): 21"w x 46.5"d.
A load test certificate is available for an additional cost; contact customer service before ordering for further information.
Internal (usable floor space): 46"w x 46"d
Cabinet capacity: Approximately 20 cylinders of 9.25" diameter or equivalent combination
Load capacity: 4,500 lbs
Cabinet dimensions:
51"w x 51"d x 79.5"h
Gas Storage Cabinet Features:
- OSHA compliant
- 4 lifting eyes allow movement by hoist hook
- Firewall barrier (1-hour rated) separates the two compartments
- Forkliftable base (7.8125"w by 2.625"h pocket openings)
- Fully-welded steel framing
- Expanded metal siding
- Tamper-resistant stainless steel hinges
- Lockable door (lock not included)
- E-track strapping system inside
- 2 ratchet straps included (4ft)
- Made in the USA
Made to Order: Estimated production is 3-4 weeks. Not Cancelable or Returnable.
